Understanding ViewModel Scoping in Jetpack Compose

Hello everyone! 👋

Many people have misconceptions about the scope of the ViewModel. In this short article, I’ll clear them up and explain ViewModel scoping in a simple way. 🧩

Let’s dive in! 🚀

🔍 Understanding Where ViewModel Instances Are Created

There are two distinct places where the ViewModel is instantiated with a new reference instead of reusing the same instance:

1️⃣ Activity Level

👉🏻 Uses by viewModels() to create a ViewModel scoped to the Activity’s lifecycle.
👉🏻 Managed by the Activity’s ViewModelStore.

2️⃣ Composables Within the NavHost

👉🏻 Uses hiltViewModel() to create ViewModels scoped to navigation destinations (e.g., NavBackStackEntry).
👉🏻 Each destination may get its own instance unless explicitly shared.

Cool? Let’s move forward! 🚀

📝 Let’s Dive Into the Code!

Let’s look at the code first and then break it down for a clear understanding. This will be super easy! 😃

Note: This is just an example of ViewModel’s scope. ⚠️ Logging inside a composable is not a best practice. 🚫

@AndroidEntryPoint
class MainActivity : ComponentActivity() {

    private val viewmodel: MainViewModel by viewModels()

    override fun onCreate(savedInstanceState: Bundle?) {

        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {

            Scaffold { paddingValues ->

                Box(
                    modifier = Modifier
                        .padding(paddingValues)
                        .fillMaxSize(),
                ) {
                    NavDemo(viewmodel)
                }

            }

        }
    }
}

@Composable
fun NavDemo(navDemo: MainViewModel = hiltViewModel()) {
    Log.e("NavDemo-Viewmodel", navDemo.hashCode().toString())
    val navController = rememberNavController()

    NavHost(navController = navController, startDestination = "main") {
        composable("main") {
            MainScreen(onItemClick = { navController.navigate("details") })
        }
        composable("details") {
            DetailsScreen(onBack = { navController.popBackStack() })
        }
    }

}

@Composable
fun MainScreen(viewModel: MainViewModel = hiltViewModel(), onItemClick: () -> Unit) {
    Log.e("MainScreen-Viewmodel", viewModel.hashCode().toString())
    Column(
        modifier = Modifier
            .fillMaxSize()
            .padding(16.dp)
    ) {
        Text(
            text = "Main Screen",
            style = MaterialTheme.typography.headlineMedium,
            modifier = Modifier.padding(bottom = 16.dp)
        )

        Box(
            modifier = Modifier
                .size(100.dp)
                .background(Color.Blue, shape = RoundedCornerShape(8.dp))
                .clickable { onItemClick() }
        )

        PlayerA()

        PlayerB()
    }
}

@Composable
fun PlayerA(viewModel: MainViewModel = hiltViewModel()) {
    Log.e("PlayerA-Viewmodel", viewModel.hashCode().toString())
    Text(text = "text", fontSize = 12.sp, color = Color.Magenta)
}

@Composable
fun PlayerB(viewModel: MainViewModel = hiltViewModel()) {
    Log.e("PlayerB-Viewmodel", viewModel.hashCode().toString())
    Text(text = "text", fontSize = 12.sp, color = Color.Magenta)
}

@Composable
fun DetailsScreen(viewModel: MainViewModel = hiltViewModel(), onBack: () -> Unit) {
    Log.e("DetailsScreen-Viewmodel", viewModel.hashCode().toString())
    Column(
        modifier = Modifier
            .fillMaxSize()
            .padding(16.dp),
        horizontalAlignment = Alignment.CenterHorizontally
    ) {
        Text(
            text = "Details Screen",
            style = MaterialTheme.typography.headlineMedium,
            modifier = Modifier.padding(bottom = 16.dp)
        )

        Box(
            modifier = Modifier
                .size(200.dp) // Different size for transition effect
                .background(Color.Blue, shape = RoundedCornerShape(8.dp))
        )

        Spacer(modifier = Modifier.height(16.dp))

        Button(onClick = onBack) {
            Text("Go Back")
        }
    }
}

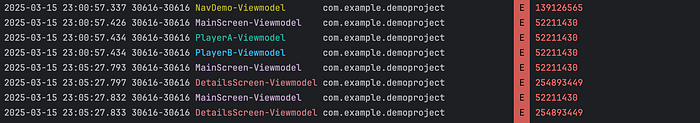

Output:-

🧐 Explanation:-

If you look closely, you’ll notice that three different instances of MainViewModel have been created. 🔄👀

🤔 Why Three Instances?

From the logs, you can see three distinct hashCode() values:

🔹 Instance A: Created using by viewModels() in MainActivity, scoped to the Activity.
🔹 Instance B: Created using hiltViewModel() in MainScreen, PlayerA, and PlayerB, scoped to the "main" destination.
🔹 Instance C: Created using hiltViewModel() in DetailsScreen, scoped to the "details" destination.

🔍 The Reason — Scoping Mismatch

✅ by viewModels() → Scopes the ViewModel to the Activity.
✅ hiltViewModel() in a NavHost → Scopes the ViewModel to navigation destinations (NavBackStackEntry).
✅ Each navigation destination gets its own ViewModel instance unless explicitly shared. 🔄What if you want the same instance of ViewModel across the app?

🔄 Sharing the Same ViewModel Instance

If you want to reuse the same ViewModel instance, you can scope it at the Activity level. But that’s not our focus here — it’s pretty straightforward! ✅

You can achieve this using the following code:

val activity = LocalActivity.current as ComponentActivity
val viewModel: MainViewModel = viewModel(activity)

This ensures the ViewModel is tied to the Activity’s lifecycle, making it accessible across different composables. 🔗

If you have any questions, just drop a comment, and I’ll get back to you ASAP. 💬✨

We’ll be diving deeper into Jetpack Compose soon, so stay tuned! 🚀

Until then, happy coding! 🎉👨‍💻
