Precise Intent Resolution -Android 15

Header image

In this article, we will discuss some new improvements to the intent filter in Android 15

Major components

• UriRelativeFilterGroup
• UriRelativeFilter

A UriRelativeFilterGroup contains a set of UriRelativeFilter objects that form a set of Intent matching rules that must be satisfied — [URL fragments, query params, etc.]

We can define these new rules in AndroidManifest file with the new <uri-relative-filter-group> tag

• With this tag, we can use data tags with existing attributes as well as the new [android:fragment, android:query, android:allow]

<intent-filter android:autoVerify="true">
    <action android:name="android.intent.action.VIEW" />
    <category android:name="android.intent.category.DEFAULT" />
    <category android:name="android.intent.category.BROWSABLE" />
    <data android:scheme="https" />
    <data android:host="developer.android.com" />

    <uri-relative-filter-group android:allow="true">
        <data android:pathPrefix="/samples" />
        <data android:query="language=kotlin" />
    </uri-relative-filter-group>

    <uri-relative-filter-group android:allow="false">
        <data android:pathPrefix="/reference" />
        <data android:fragment="jetpack" />
    </uri-relative-filter-group></intent-filter>

Implementation

In the AndroidManifest file, add intent-filter to the Activity tag to handle deep links 🔗

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools">

    <application
        android:allowBackup="true"
        android:dataExtractionRules="@xml/data_extraction_rules"
        android:fullBackupContent="@xml/backup_rules"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.Android15Samples"
        tools:targetApi="31">

        <activity
            android:name=".MainActivity"
            android:exported="true"
            android:theme="@style/Theme.Android15Samples">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
            <intent-filter android:autoVerify="true">
                <action android:name="android.intent.action.VIEW" />
                <category android:name="android.intent.category.DEFAULT" />
                <category android:name="android.intent.category.BROWSABLE" />
                <data android:scheme="https" />
                <data android:host="developer.android.com" />

                <uri-relative-filter-group android:allow="true">
                    <data android:pathPrefix="/samples" />
                    <data android:query="language=kotlin" />
                </uri-relative-filter-group>

                <uri-relative-filter-group android:allow="false">
                    <data android:pathPrefix="/reference" />
                    <data android:fragment="jetpack" />
                </uri-relative-filter-group>

<!--                https://developer.android.com/reference#jetpack-->
            </intent-filter>
        </activity>

    </application>

</manifest>

Activity that shows the Uri from the deep link 🔗 intent

class MainActivity : ComponentActivity() {

    private var uri = mutableStateOf("")

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {
            Android15SamplesTheme {
                Content(modifier = Modifier.fillMaxSize(), uri = uri)
            }
        }
        handleIntent(intent)
    }

    override fun onNewIntent(intent: Intent) {
        super.onNewIntent(intent)
        handleIntent(intent)

    }

    private fun handleIntent(intent: Intent) {
        val uri = intent.data
        this.uri.value = uri?.toString().orEmpty()
    }
}

@Composable
fun Content(uri: State<String>, modifier: Modifier = Modifier) {
    Scaffold(modifier = modifier) { innerPadding ->
        Column(
            modifier = Modifier
                .fillMaxSize()
                .padding(innerPadding),
            verticalArrangement = Arrangement.Center,
            horizontalAlignment = Alignment.CenterHorizontally
        ) {
            Image(
                painter = painterResource(id = R.drawable.img_android_15_logo),
                modifier = Modifier.size(200.dp),
                contentDescription = "Android15 Logo"
            )
            Spacer(modifier = Modifier.size(32.dp))
            Android15ContentHeader(
                modifier = Modifier.padding(innerPadding)
            )
            if (uri.value.isNotEmpty()) {
                Spacer(modifier = Modifier.size(32.dp))
                UriInfoFromLink(
                    uri = uri.value,
                    modifier = Modifier.padding(innerPadding)
                )
            }
        }
    }
}

@Composable
fun Android15ContentHeader(modifier: Modifier = Modifier) {
    Text(
        text = "Android15 - Samples",
        modifier = modifier,
        style = MaterialTheme.typography.headlineMedium
    )
}

@Composable
fun UriInfoFromLink(uri: String, modifier: Modifier = Modifier) {
    Text(
        text = "Uri from intent: $uri",
        modifier = modifier,
        style = MaterialTheme.typography.labelLarge
    )
}

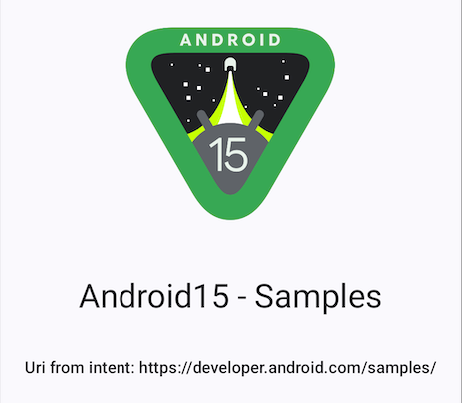

UI — Composable Preview

Composable preview

Demo

• android:query tag and android:allow set to true

<!--  https://developer.android.com/samples?language=kotlin-->

<uri-relative-filter-group android:allow="true">
    <data android:pathPrefix="/samples" />
    <data android:query="language=kotlin" />
</uri-relative-filter-group>

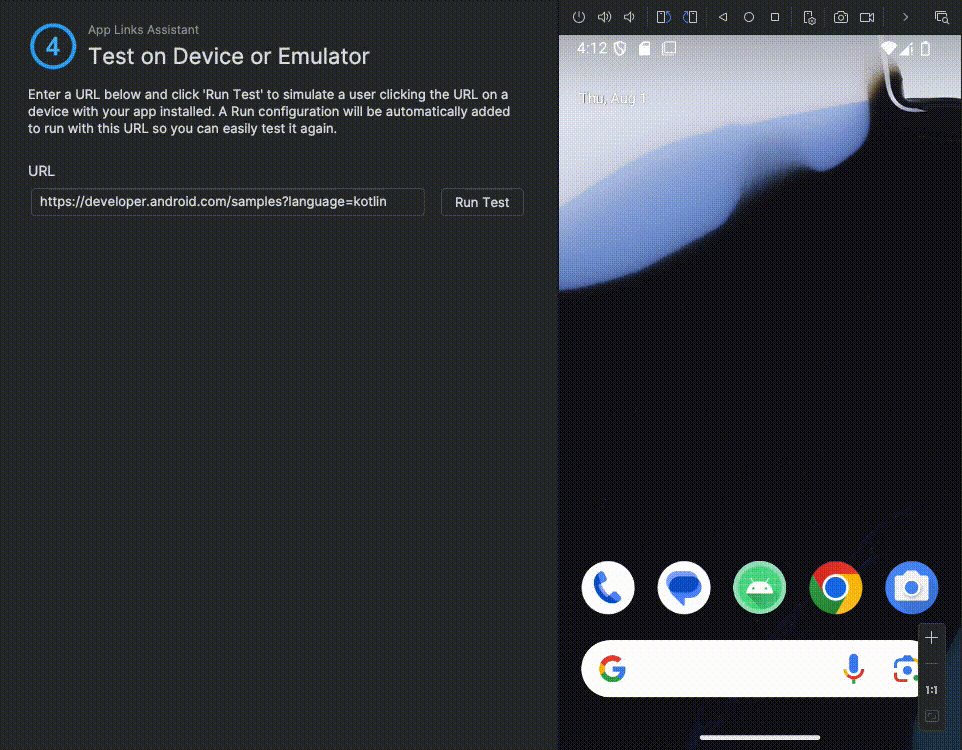

Demo — android:query tag and android:allow set to true

• android:fragment tag and android:allow set to false

<!--   https://developer.android.com/reference#jetpack-->

<uri-relative-filter-group android:allow="false">
    <data android:pathPrefix="/reference" />
    <data android:fragment="jetpack" />
</uri-relative-filter-group>


android:fragment tag and android:allow set to false
