Federated Learning

Bringing Machine Learning to the edge with Kotlin and Android

Training a machine learning model requires data. The more we have, the better. However, data is not cheap and more importantly, it can contain sensitive and personal information.

Recent developments in privacy in the form of new laws as GDPR and the increase of awareness of users and citizens in the value of their data is generating a need for techniques to enforce more privacy

Though techniques as anonymisation can greatly help with the privacy issue the fact that all the data is being sent to a central location to train the machine learning models is always a motive to be worried about

This project is a proof of concept of how to set up a basic Federated Learning environment using an Android application as the edge device

The Code

If you want to jump straight away into the code, you can find it in the following repos

Android Application

mccorby/PhotoLabeller

The server is in

mccorby/PhotoLabellerServer

Components

The project is divided in three main parts:

1. A server, written in Kotlin and using DL4J to generate a model based on the Cifar-10 dataset
2. An Android application that uses this model to classify images taken with the camera. Written in Kotlin and using DL4J too
3. The Federated Learning setup where the Android application is able of training the model using the local data and the server is able of updating the shared model with the updates coming from the edge

The Model

The model is based on the Cifar-10 dataset, a well-known dataset that allows classification of ten different classes of images

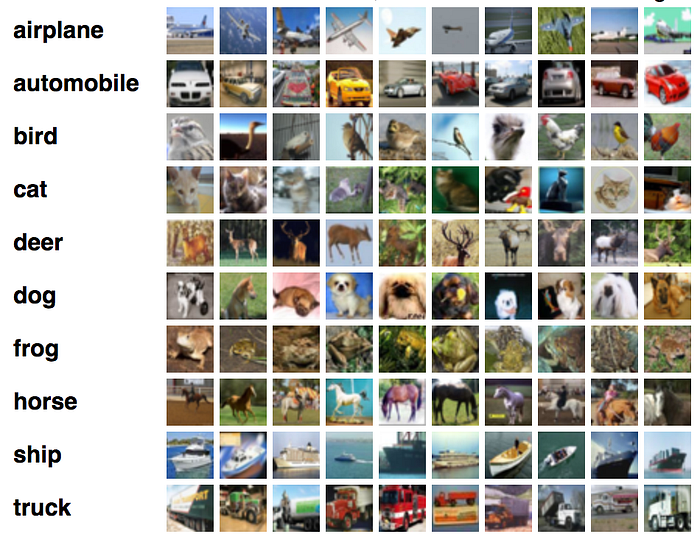

Classes in Cifar-10 with some examples

The architecture of the model has been tuned in order to achieve a double purpose:

a) To have a not-so-bad performance

b) To allow it to be loaded and trained in an Android app

The selected architecture is a shallow Convolutional Neural Network with one CNN layer and a Dense layer. This probed to be enough to obtain a decent performance using 50 epochs and 10,000 samples while keeping the size of the model small

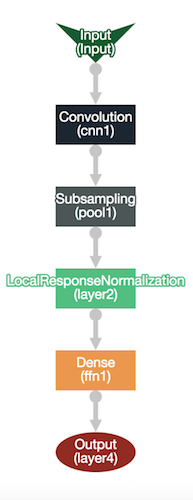

The CNN with a dense layer

(A note on the model size: The focus of this PoC is in Federated Learning. Better models can be trained with more layers and reducing the size of it by applying different techniques as quantify or by using structured or sketched updates. This is for another PoC!)

The code for training the model in the server side is located in the model module of the PhotoLabellerServer project

Making predictions with the App

The app allows basic classification of the photos the user takes with the camera using the model embedded in the app itself or, when connected to the server, the latest version of the shared model

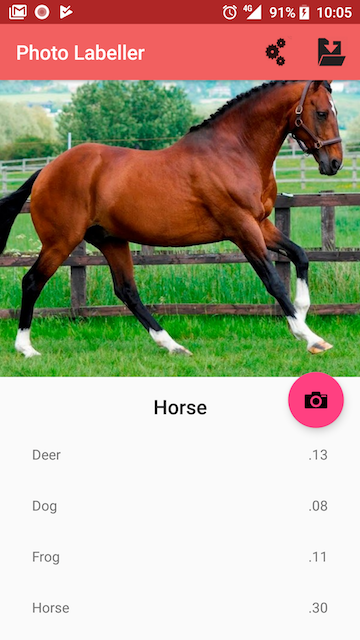

The image classifier in action

The app is structured in modules with the app module containing the Android specific classes and trainer the Deeplearning4j related classes. The base module contains the interactors and domain objects

The implementation of the Trainer, object in charge of doing the predictions and training using DL4J, invokes the predict function to obtain the classification of the image

The Federated Learning setup

Federated Learning turns the update of Machine Learning models upside-down by allowing the devices on the edge to participate in the training.

Instead of sending the data in the client to a centralised location, Federated Learning sends the model to the devices participating in the federation. The model is then re-trained (using Transfer Learning) with the local data

And the data, your data, never leaves the device, let that be your phone, your laptop or your IoT gadget

The server opens a “round of training” during which the clients can send updates to the model to the server.

Client Side. Training on the edge

Our Android app decides when to participate in the training of the shared model. It performs a Transfer Learning operation using the model it already has or the one in the server if it’s newer. The update done to the model is then sent to the server

Server Side. Averaging and updating the model

Once the round is closed, the server updates the shared model by doing Federated Averaging as seen in the following gist

The server also implements a simple REST API that is used by the clients.

Note that the client, the Android app, is implemented in a way that would require little effort to move to some other Kotlin platform

Notes

Performance

Doing any kind of operations with images in an Android app is always demanding in terms of the computation effort the device must do. Doing training of a model using images increases this effort several times

This means the transfer learning phase done in the Android app is quite short: a couple of epochs with just a few samples. This is the most the app can do before running out of memory! The total number of parameters is around 450k. That is a lot for the memory available to an app

However, other models using other type of data run smoothly. A previous version of the Federated Learning setup was using a diabetes dataset with just a few features. This could be done with more epochs (I actually didn’t find the limit as I was obtaining the desire performance before reaching an OOM) and more data points

The app is properly architected for you to try some other models and datasets. Feel free to reuse it for your research and let me know if I can help

Thanks for reading!
