Complex UI/Animations on Android — featuring MotionLayout
Exploring complex multi-step animations with MotionLayout (and Coroutines).
MotionLayout is the new kid on the block for animations, transitions, complex motions, what-have-you. In this article, we’re going to look at how MotionLayout and Coroutines can help us structure multi-step animations.
The previous article dives into all the different animations and widgets without using MotionLayout. I encourage you to read it because:
- We will only be going into the filter sheet transitions in this article and not the adapter, tabs and other animations.
- You can understand and appreciate the differences in writing these animations with and without using MotionLayout.
Before we begin
- TLDR? View the source code on Github. It’s well documented and contains code for both; with and without MotionLayout.
- Download the app on the PlayStore or build the source code to demo the app. (Don’t forget to check the “Use MotionLayout” checkbox in the Nav Drawer).
What is MotionLayout? A quick intro…

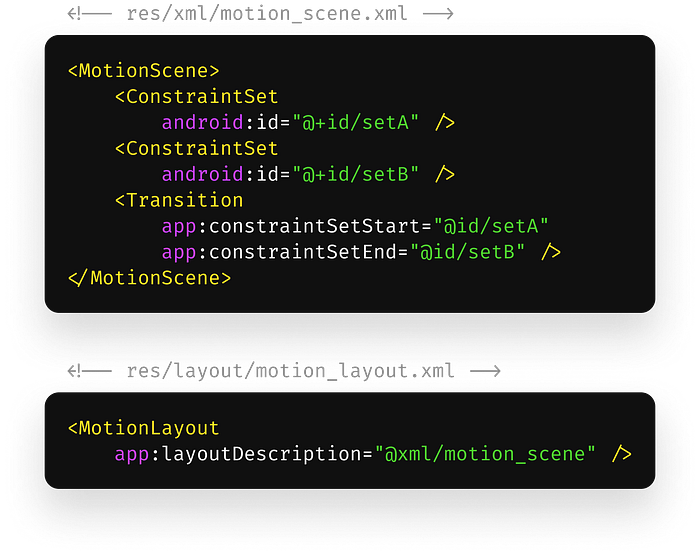

Simply put, MotionLayout is a ConstraintLayout that allows you to easily transition between two ConstraintSets.
<ConstraintSet> contains all the constraints and layout attributes for each view.
<Transition> specifies the starting and ending ConstraintSets to transition between.
Throw all of this into a <MotionScene> file and you have yourself a MotionLayout!
As layouts and animations become more complex, the MotionScene also becomes more elaborate. We’re going to take a look at these components.
Learn more about MotionLayout:
#1 Nicolas Roard’s Introduction to MotionLayout Series.
#2 James Pearson’s Advanced & Practical MotionLayout Talk.
#3 Official Android Developers Guide on MotionLayout.
The Animation
All the animations put together, the motion scene file for this project contains 10 ConstraintSets and 9 Transitions between them. The video below demonstrates all the ConstraintSets and Transitions. There are 4 Animations in total that we will be looking into:

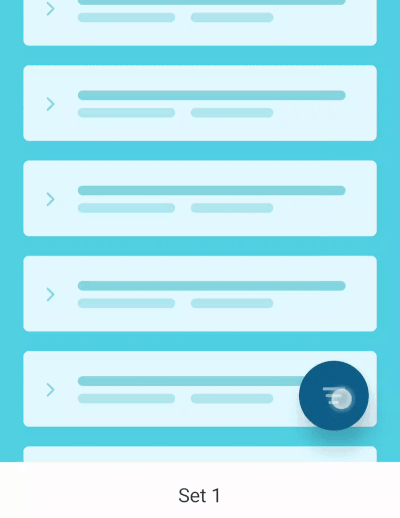

- Opening the filter sheet:
Set1 → Set2 → Set3 → Set4 - Closing the filter sheet:
Set4 → Set3 → Set2 → Set1 - Applying filters:

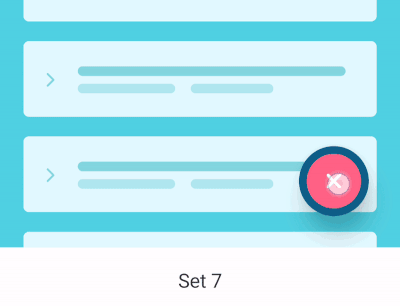

Set4 → Set5 → Set6 → Set7 - Removing filters:
Set7 → Set8 → Set9 → Set10
Note: The RecyclerView Items animation in the background is not a part of the MotionLayout. Later in this post, we will see how we can choreograph external animations along with the MotionLayout.

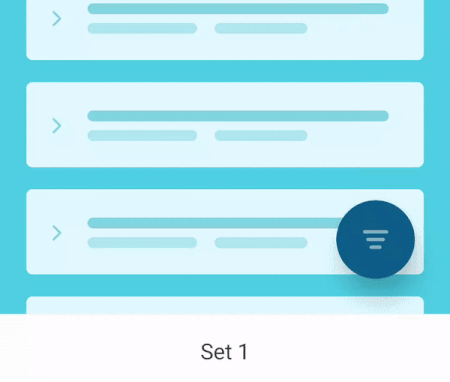

Every animation (GIF) in this article will show the ConstraintSet details (
Ex: Set 4, Transitioning.., Set 5, etc) below it to make it easier to follow while reading and navigating the source code.
< ConstraintSet />
ConstraintSets are the building blocks required by MotionLayout to perform animations. This is where you specify all your constraints, layout properties and more.
A
<ConstraintSet>must contain a<Constraint>element with all the layout properties for each view you want to animate.

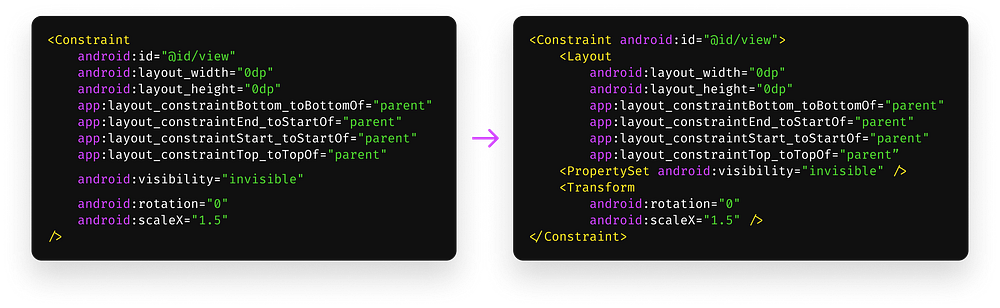

Break up your <Constraint> elements
You can specify all your layout properties in the <Constraint> element. But for more complex animations, you should break it up using the <Layout> <PropertySet> <Transform> <Motion> <CustomAttribute> tags.
This allows you to only override the properties that you want without rewriting all the properties repeatedly.
app:deriveConstraintsFrom = ”…”

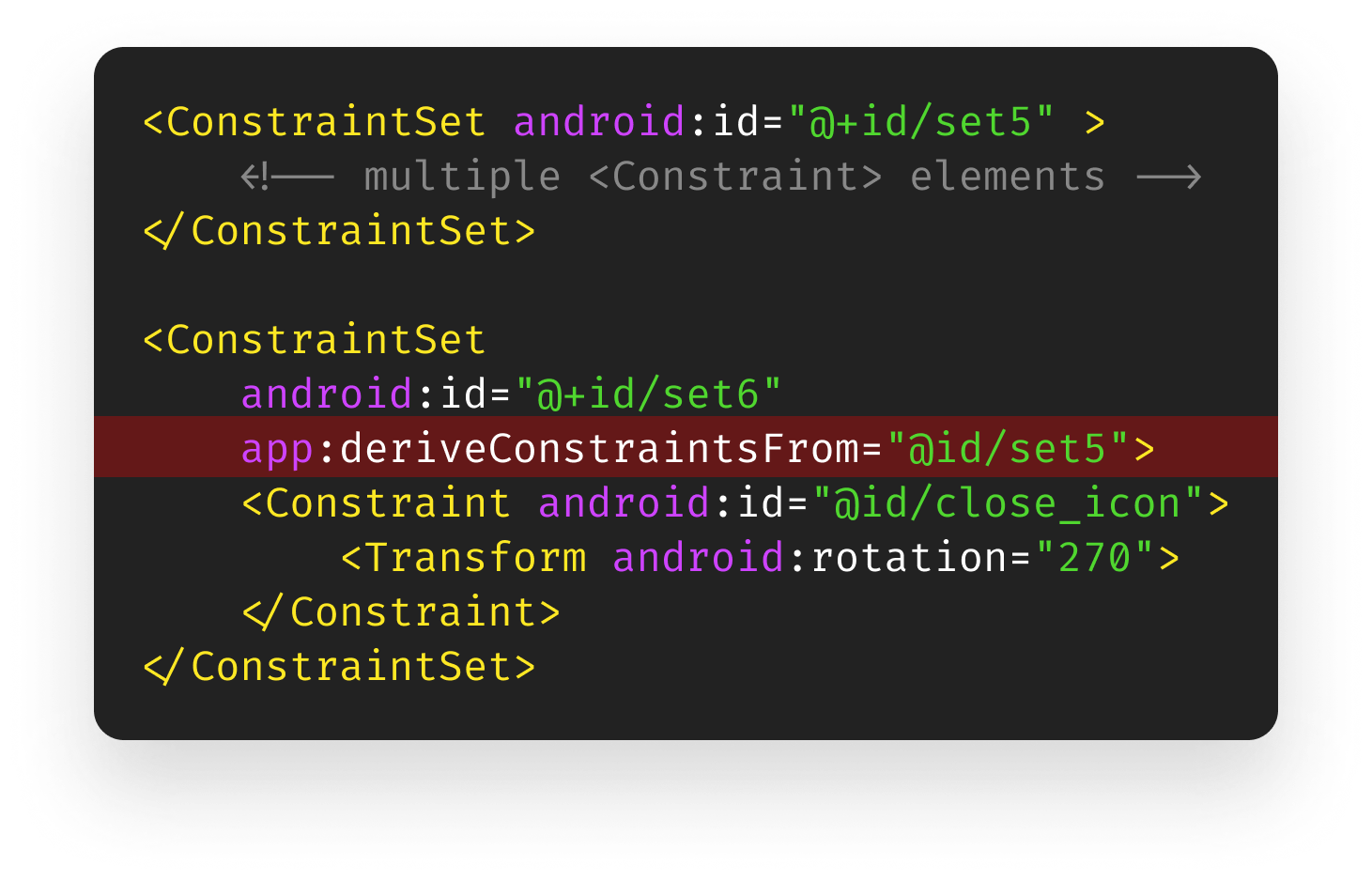

deriveConstraintsFrom is a very useful tag that allows you to inherit from any other <ConstraintSet>. This way, you don’t have to rewrite all your views/constraints/properties but just the ones you want to animate.
Combine this with the previous tip of breaking up your <Constraint> elements and you get neat ConstraintSets with just the changes you want.
In this project, each of the 10 ConstraintSets derives from the previous set and only modifies what needs to be animated. For example: In the following transition, the close icon rotation is done by deriving all constraints from Set5 and only applying rotation in Set6.
Warning: When overriding one of the
<Layout> <PropertySet> <Transform> <Motion> <CustomAttribute>elements, all the properties in that element get overriden, so you may have to copy the other properties from that element.
Flatten your views when necessary
MotionLayout can only work with it’s direct children views and no nested views.

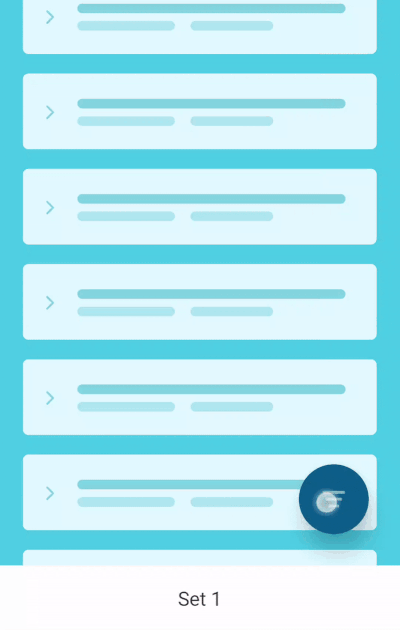

For example, in this animation, it may look like the filter icon is a part of the circular FAB (CardView). But they were split into separate views because they each have their own journey in this animation.
Also, the elevation of the fab is animated from Set1 → Set2. The icon must be placed at a higher elevation for it to be visible. An undesired effect of this is the icon casts it’s own shadow. To prevent this, we can use:
android:outlineProvider="none"Shadows are created by the outline provider of a view. If we set it to none then a shadow isn’t created.
Custom Attributes
MotionLayout provides most of the basic properties that we might want to animate. But it can’t provide everything. Custom Views, for example, might require animating some other property.
<CustomAttribute> bridges that gap by allowing you to use any setter in your view. It uses reflection to call the method and set the value.
<CustomAttribute
app:attributeName="radius"
app:customDimension="16dp" />Note: You must use the setter name, not the xml attr name. For example, CardView has a
setRadius()method and the same in xml isapp:cardCornerRadius. CustomAttribute should refer to the setter — “radius”.
“Invisible” vs “Gone”

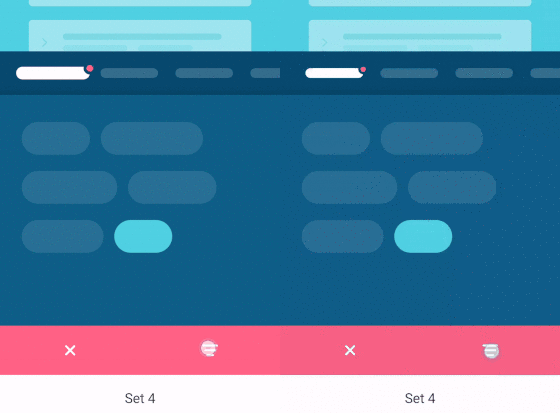

→ visible ... Right: gone → visibleWhen animating visibility from invisible /gone to visible, watch out for this difference.
✓ gone → visible will animate alpha and scale.
✓ invisible → visible will animate only alpha.
<Transition />
Transitions are the connections between 2 ConstraintSets. They specify the start and end states to transition between.
<Transition
app:constraintSetStart="@id/set1"
app:constraintSetEnd="@id/set2"
app:motionInterpolator="linear"
app:duration="300" />You can also specify swipe and click related functionality in the transitions using the<OnClick> and <OnSwipe> elements but we will not be going into them in this article since they’re not rquired for the 10 set animation we’re looking at.
Interpolators
We can specify interpolators for our transitions using app:motionInterpolator. The available options are linear, easeIn, easeOut and easeInOut. These may not be enough when you compare them to things like AnticipateInterpolator, BounceInterpolator, etc.

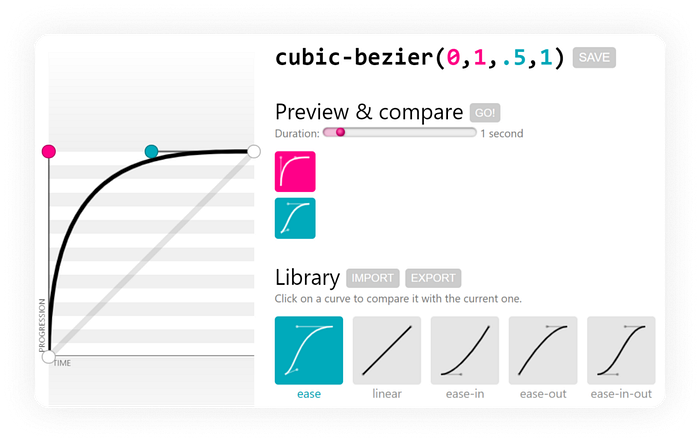

For these scenarios, you can use the cubic() option where you can define your own interpolator using bezier curves. You can make your own bezier curves and get the values at cubic-bezier.com.
You can set it by using:app:motionInterpolator=”cubic(0,1,0.5,1)
Keyframes
Sometimes, just having a start and end state isn’t enough. For more complex animations, we might want to specify the course of the transition in more detail. Keyframes help us specify “checkpoints” in the transition where we can change any attribute of a view at any given time.
The article “Defining motion paths in MotionLayout” goes into more depth on keyframes and how to use them.

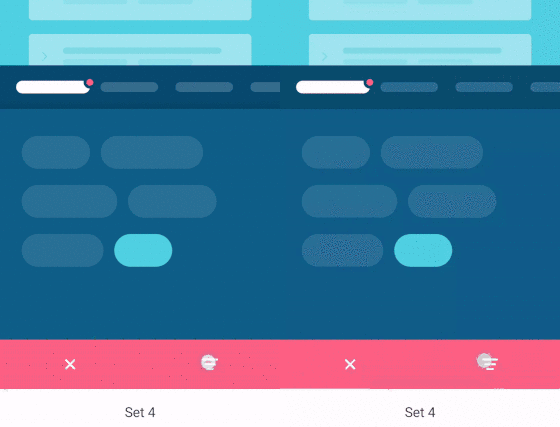

The animation on the left is with 9 keyframes and the one on the right is without keyframes.
As you can see, the start (set 4) and the end (set 5) are the same for both of them. But by using keyframes, we have much finer control on what happens to each element at any point during the transition.
Structuring Keyframes

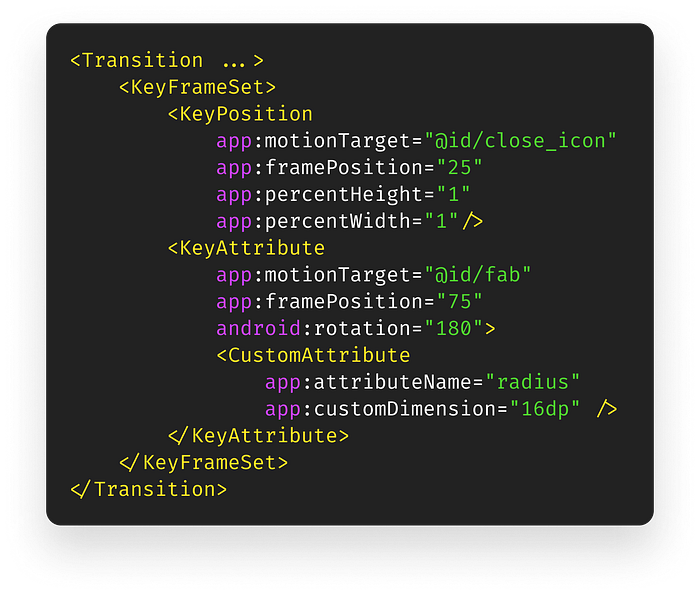

Every <Transition /> can have one or more <KeyFrameSet /> elements in which all the keyframes are specified. For this project, only <KeyPosition /> and <KeyAttribute /> elements were used.
motionTargetspecifies which view is affected by the keyframe.framePositionspecifies when the keyframe is applied during the transition (0–100)<KeyPosition />is used to specify changes in width, height and x,y coordinates<KeyAttribute />is used to specify any other change including CustomAttributes.
framePosition = 0 vs 1
Sometimes, we want to change a property at the very start of an animation. In normal animations, it is possible by using animator.doOnStart{...} or something similar. Let’s try achieving the same with keyframes..
In this particular animation, when the user clicks on the filter button, the animation begins by changing the fab (CardView) to a circle and collapsing it in size.
The problem here is when framePosition = 0 is used to alter the value at the start of the animation, MotionLayout doesn’t record it.
So, if you want to have a keyframe that specifies something at the start of any transition, use framePosition = 1 instead.
<KeyAttribute
app:motionTarget="@id/fab"
app:framePosition="1">
<CustomAttribute
app:attributeName="radius"
app:customDimension="600dp" />
</KeyAttribute>Use Custom Views when necessary
The availability of CustomAttributes allows us to have flexible layouts with custom views.
For instance, a lot of the transitions in this animation involves the FAB (CardView) to grow and shrink as a circle. The issue with this is, to keep the CardView as a circle, cornerRadius must be <= size/2. Normally this is easy with something like ValueAnimator because we know all the values at all times.
But MotionLayout hides all the calculations away from us. So to achieve this, we must introduce a new view:

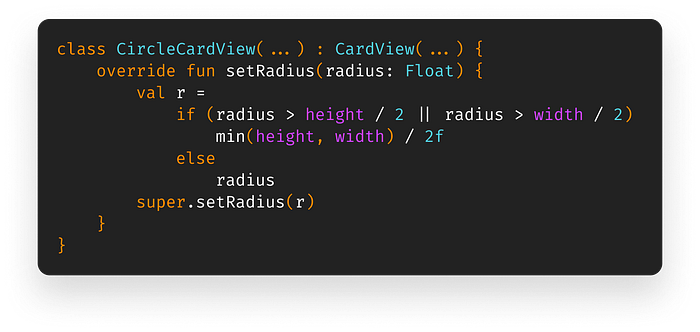

CircleCardView handles this case by limiting the radius to a max of size/2. Now when MotionLayout calls into the setter (remember CustomAttributes?), we won’t face any issues.
Choreographing multi-step animations
Currently, MotionLayout does not have an API that allows for controlled multi-step transitions. We can use autoTransition but it’s quite limiting (we’ll get into that later). In pseudocode, this is how you would do it:

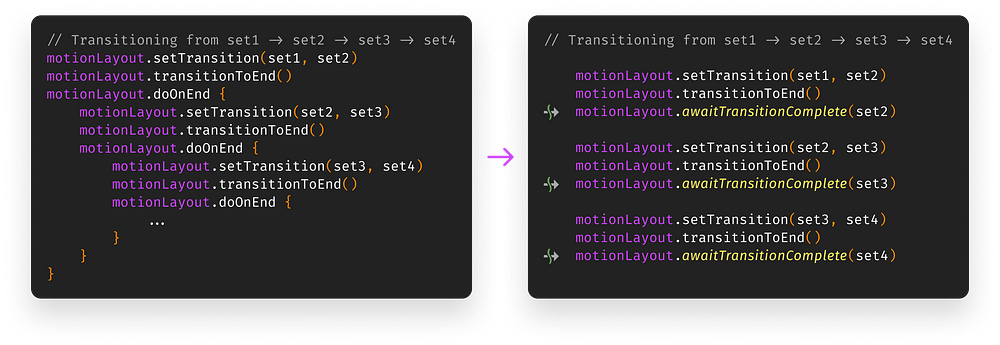

This quickly turns ugly and into the dreaded callback-hell. Coroutines, on the other hand help us convert asynchoronous callback code into linear code.
MotionLayout.awaitTransitionComplete()
Chris Banes’s article on Suspending over Views is a must-read on how you can implement coroutines in View-related code.
He introduces us to awaitTransitionComplete(), which is a suspend function that hides away all the listeners, making it easy to wait for a transition to be complete using coroutines:
Note: The
awaitTransitionComplete()extension method uses a modified MotionLayout which enables multiple listeners to be set as opposed to only one (feature request).
AutoTransition

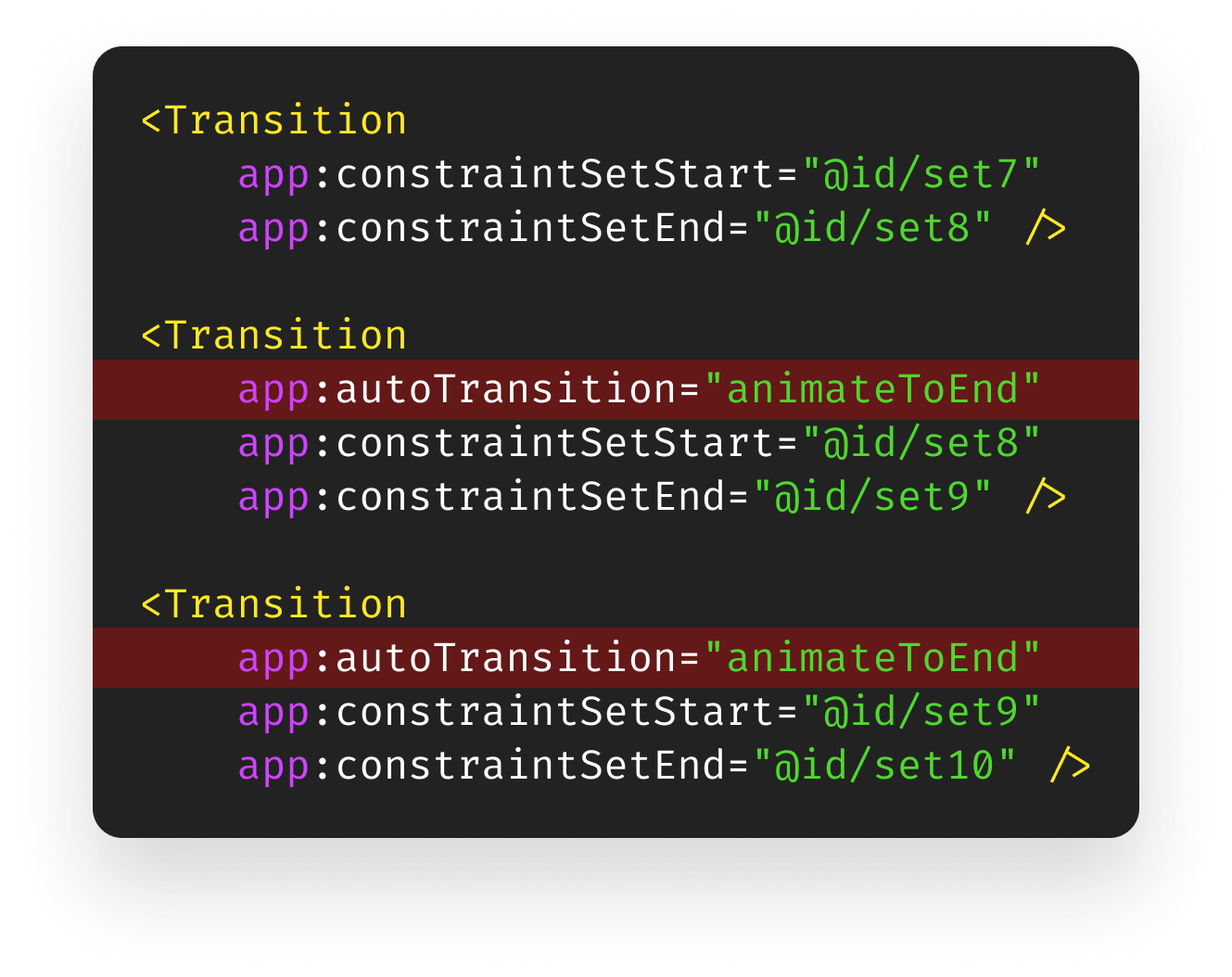

autoTransition is the easiest way to achieve multi-step transitions without coroutines. Let’s say we want to achieve the “Removing Filters” animation from Set7 → Set8 → Set9 → Set10.
Now, if we do motionLayout.transitionToState(set8), MotionLayout transitions from Set7 → Set8. When it reaches Set8, it automatically transitions to Set9. And similarly, to Set10.
autoTransitionwill automatically execute the transition when MotionLayout reaches the ConstraintSet specified inconstraintSetStart.
AutoTransition is not perfect
If you watch the animation again, you will notice that there is an animation going on with the adapter items in the background. To accomplish these animations in parallel with the MotionLayout transitions, we will have to use coroutines. They cannot be timed correctly by only using autoTransition.
The lines marked with
//Simultaneousoccur in parallel with the transition that’s taking place.
Since autoTransition doesn’t wait when jumping from one transition to the next, awaitTransitionComplete() only lets us know when the transition is complete. It does not actually wait at the end of the transition. Which is why, we use transitionToState() only once, at the beginning.
Multi-Step Forward and Reverse Transitions
AutoTransition combined with coroutines help us achieve control over multi-step transitions.
But what if we want to animate backwards (Set4 → Set1) while reversing through each transition?
Reversing a specific transition, say, Set4 → Set3 is possible by using transitionToStart(). But if we use autoTransition, then it would animate to Set3, then back to Set4 automatically because of the autoTransition.
Opening Sheet Animation
The code for opening the filter sheet will differ slightly from what we saw in the previous section since we aren’t using autoTransition.
- We have to use
transitionToState()after awaiting each time. This was not necessary before becauseautoTransitionwould just run through all of them without waiting. Here, we have to do it manually. - Notice how we don’t use
setTransition()everytime after awaiting. This is becauseMotionLayoutwill identify which transition to use based on the current ConstraintSet and the ConstraintSet mentioned intransitionToState().
Closing Sheet Animation (Reverse)
Since all <Transition> elements are forward-based, we have to add a couple of lines to make it reverse-able. The essence of it is:
// Set the transition to be reversed (MotionLayout can only detect forward transitions).
motionLayout.setTransition(startSet, endSet)// This will set the progress of the transition to the end
motionLayout.progress = 1f// Reverse the transition from end to start
motionLayout.transitionToStart()// Wait for transition to reach the start
motionLayout.awaitTransitionComplete(startSet)// Repeat for every transition...
✔️ This now allows us to step through multiple transitions in reverse while maintaing the ability to do other things in parallel.
Conclusion — With or without MotionLayout?
MotionLayout combined with coroutines makes it super easy to achieve very complex animations with very little code while maintaing a flat view hierarchy!
In my previous article, I explore how all of this was done without using MotionLayout. The amount of code required to get all this to work was much greater. A lot of math was involved in getting the animations to work, complex view hierarchies, etc.
MotionLayout takes away all the nonsense and leaves us with what’s necessary. With coroutines and a soon-to-come IDE editor, the possibilities might just be endless.
Hope you enjoyed this post 😃! Check out the source code if you’re further interested!
