Awesomeness of ConstraintLayout Flow
Constraint Layout Flow
Even though Constraint Layout is powerful, Linear Layout is enough to show 2 views horizontally, like the following.
But, what if showing 8 views on multiple lines like the following?
May be we can use 3 constraint layout chains. But, it is not very convenient.
This is where Constraint Layout’s Flow comes in.
Flow is a virtual layout first introduced in Constraint Layout 2.0.0-alpha5 . It adds Constraint Layout even more power.
Constraint Layout’s Flow is very useful for displaying views in one direction as much as possible and wrap to next line if space is not enough.
Flow’s orientation can either be horizontal or vertical. It comes with some cool attributes : WrapMode, Gap, Styles, Bias and Alignment.
Wrap Mode
Wrap mode is the attribute to define how to make wrapping. It supports three modes : NONE, CHAIN and ALIGN

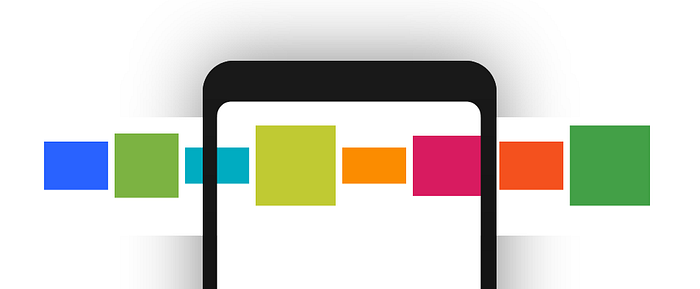

NONE : It is default mode. Views will not wrapped to another row or column. They will be outside of the screen and cannot be seen.

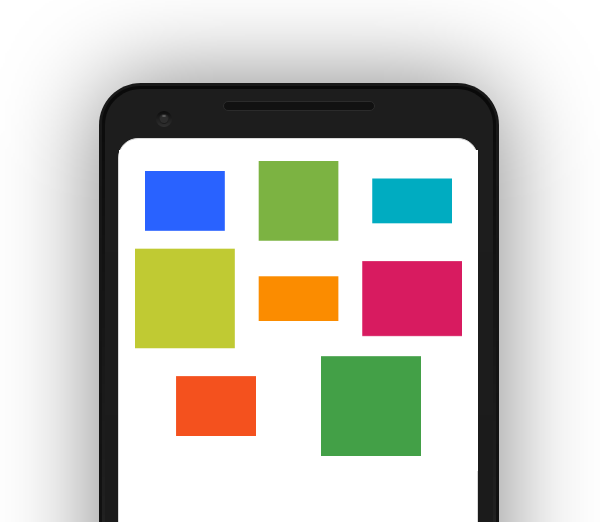

CHAIN : Chain mode is very similar to Chains and wrapping as an addition. Chaining happens row by row or column by column.
Default chain style is SPREAD.

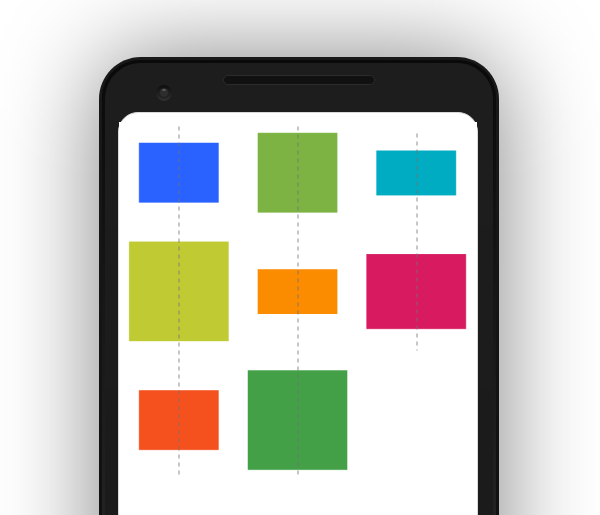

ALIGNED : Aligned mode is like CHAIN but chaining is considered after aligning views from different rows and columns.
Default chain style is SPREAD.
Usage
app:flow_wrapMode = " none | chain | aligned "If you want to change flow mode programmatically,
flow.setWrapMode(
Flow.WRAP_NONE | Flow.WRAP_CHAIN | Flow.WRAP_ALIGNED )Gap
Gaps are spacings between views or wrapped lines. Gap can be float, from 0 to 1.
Usage
flow_horizontalGap = “ float “
flow_verticalGap = " float "or
flow.setVerticalGap( float)flow.setHorizontalGap( float)
Styles
Flow’s styles are similar to constraint layout’s basic chain modes : SPREAD, SPREAD_INSIDE and PACKED.
SPREAD : Views are spread inside parent view with equal spacing between views and parent view.
SPREAD_INSIDE : Views are spread inside parent view with equal spacing only between views by taking parent view’s size.
PACKED : Views are packed at the center without filling parent view.
When PACKED style is applied, Bias is also applied with default value 0.5.
Usage
app:flow_horizontalStyle = “ spread | spread_inside | packed ”app:flow_verticalStyle = “ spread | spread_inside | packed ”
If you want to set style programmatically,
flow.setHorizontalStyle(
Flow.CHAIN_SPREAD | Flow.CHAIN_SPREAD_INSIDE | Flow.CHAIN_PACKED)flow.setHorizontalStyle(
Flow.CHAIN_SPREAD | Flow.CHAIN_SPREAD_INSIDE | Flow.CHAIN_PACKED)
Both horizontal and vertical styles can be applied at the same time.
Bias
Biasing only works on PACKED flow style. It doesn’t work on SPREAD and SPREAD_INSIDE because views are distributed equally and don’t care about bias.
Bias value is “float” and it can be between 0.0 and 1.0.
Usage
app:flow_horizontalBias = “ float "app:flow_verticalBias = “ float "
If you want to change chain style programmatically,
flow.setHorizontalBias( float)flow.setVerticalBias( float)
Both horizontal and vertical bias can be applied at the same time.
Alignment
Alignment can either be horizontal or vertical. Alignment mode opposite to flow direction is only considered. For example, vertical alignment works only if flow is in horizontal direction.
Usage
app:flow_verticalAlignment = “ top | center | bottom | baseline ”app:flow_horizontalAlignment = “ start| end ”
or programatically
flow.setVerticalAlignment(
Flow.VERTICAL_ALIGN_TOP | Flow.VERTICAL_ALIGN_CENTER | Flow.VERTICAL_ALIGN_BOTTOM | Flow.VERTICAL_ALIGN_BASELINE )
flow.setHorizontalAlignment(
Flow.HORIZONTAL_ALIGN_START | Flow.HORIZONTAL_ALIGN_END )
Playground
If you want to play around with Constraint Layout Flow, try this instant app on Google Play Store.
Or explore the code? Here is the repo link.
Happy Flowing.
